Xinzhongsen は、中国のガススプリング式ダブルスタック自転車保管ラック（ロック付き）の専門メーカーであり、革新的で効率的な自転車保管ソリューションの提供に取り組んでいます。 Xinzhongsen は通常、高度な生産技術と豊富な設計経験を活かし、ユーザーが最高の体験と満足を得られるように、省スペースで安全かつ信頼性の高い 2 層自転車ラックの開発に注力しています。
モデル番号: F-QLH20-LR；D-55MM-LB
製品の原産地：中国
支払い: T/T、L/C
出荷港: アモイ

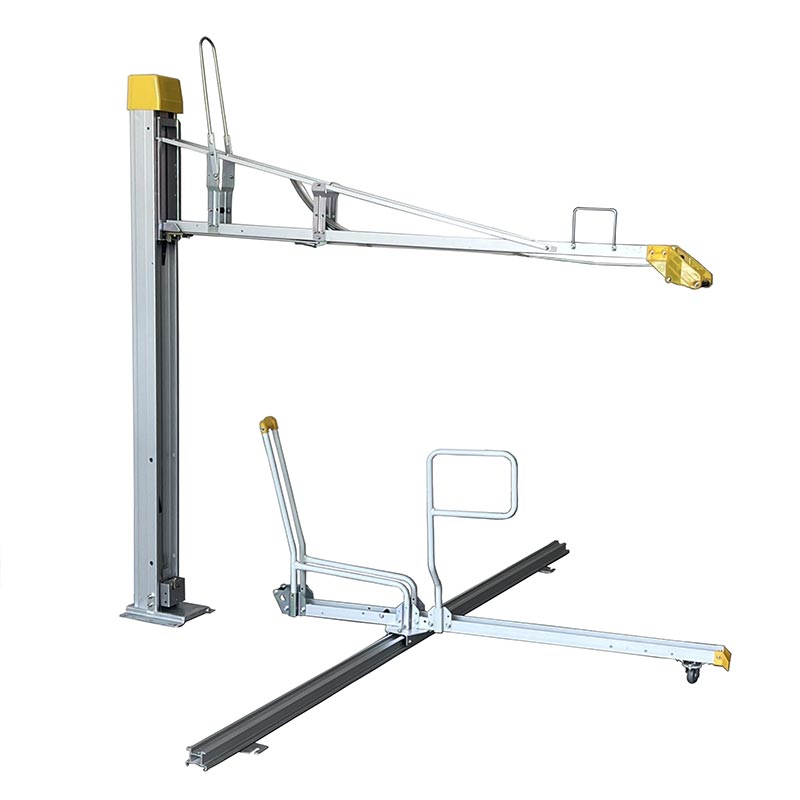

The Gas Spring Operated Double Stacked Bike Storage Rack with Lock is the state-of-the-art solution for efficient and secure bike storage available today. The assisted lifting mechanism ensures smooth and easy lifting, allowing user to access their bike with ease. For security, the rack is also equipped with a locking ring to lock the bike to helping to reduce theft.
| Product Name | Gas Spring Operated Double Stacked Bike Storage Rack with Lock |
| Model Number | F-QLH20-LR；D-55MM-LB |
| Material | Pillar, lifting rack: Aluminum alloy |
| Measurements |
Vertical lifting rack:L:1970 * W:220 * H:1820 （mm） Sliding bike rack: L:1570 * W:100 * H:720 （mm） |
| Colors | Light grey or customized |
| Capacity | 1 bike per upper rack |
| Loading | Vertical lifting rack: 15 to 22KG; |
| Mount | fixing to floor using expansive anchor bolts. |
| Installation Angle | 10° or customized |
| Recommended Ceiling Height | 2500mm |
| Maintenance | Minimal maintenance required |
Gas Spring Operated Double Stacked Bike Storage Rack with Lock Features and Benefits
-Suitable for indoor and outdoor use
-Space efficient high-capacity bicycle parking
-Accommodates most types of bikes
-Each bike rack comes with lock points allowing for secure bike to reducing theft.
-Low maintenance.
Green cycling and storage
-Recyclable and environmentally friendly materials
Installation
The Heavy Bike Carrier Double Level Vertical Lift Bike Rack can be installed at the angle of 10°，30°，45° to accommodate different situations , particularly useful for sites with narrow aisles.
Upper Vertical lifting rack: Angle 10°-Centre to centre distance of 60cm;
We take pleasure in guiding you through the layout of your available space, ensuring that the parking area is both highly efficient and seamlessly accessible.
Delivery
Current lead time is 7-9 weeks from receipt of your written purchase order. Extra time may be needed if extensive customization is required.
The upper vertical lift bike rack and lower sliding rack of our bike rack system are designed to function independently, offering you the flexibility to select and purchase additional models that best align with the specific requirements of your project. Should you require a more tailored solution or have any inquiries about customization, please feel free to reach out to us at your convenience. We are always here to assist you with any detailed program or further information you may need.
