2段自転車ラック用ワイヤレスロックは、Xinzhongsenが開発・製造したスマート自動ロックを備えた駐車ソリューションです。この二段自転車ラックはスペースを節約し、ユーザーにとって便利であるだけでなく、安全性にも重点を置いており、自転車の安全性を確保するために、サイクリストは携帯電話アプリを通じてロックを簡単に制御できます。また、サイクリストはAPPを通じて決済することもでき、便利な管理を実現します。 乗客は現金を持ち歩く必要がなくなり、駐車場の無人化が実現できるため、管理効率が大幅に向上し、運営コストが削減され、ユーザーエクスペリエンスが大幅に向上します。
モデル番号: FD-QLH20
製品の原産地：中国
支払い: T/T、L/C
出荷港: アモイ
The biggest advantage of the Wireless lock for two-tier bike rack is its efficient space utilization, which allows more than twice as many bikes to be parked in the same footprint as a single-tier bike rack. The wireless lock for two-tier bike racks provides safe and convenient parking for cyclists and a cost-effective solution for operators.
| Product Name | Wireless lock for two-tier bike rack |
| Model Number | FD-QLH20 |
| Material |
Pillar, lifting rack and sliding bike rack: Aluminum alloy Wireless lock: Plastic & iron |
| Measurements |
Vertical lifting rack:L:1970 * H:1820 （mm） Sliding bike rack: L:1570 * H:720 （mm） |
| Colors | Light grey or customized |
| Capacity | 1 bike per upper rack |
| Loading |
Vertical lifting rack: 15 to 22KG; Sliding bike rack:≤30KG |
| Mount | fixing to floor using expansive anchor bolts. |
| Installation Angle | 10° or customized |
| Recommended Ceiling Height | 2500mm |
| Maintenance | Minimal maintenance required |

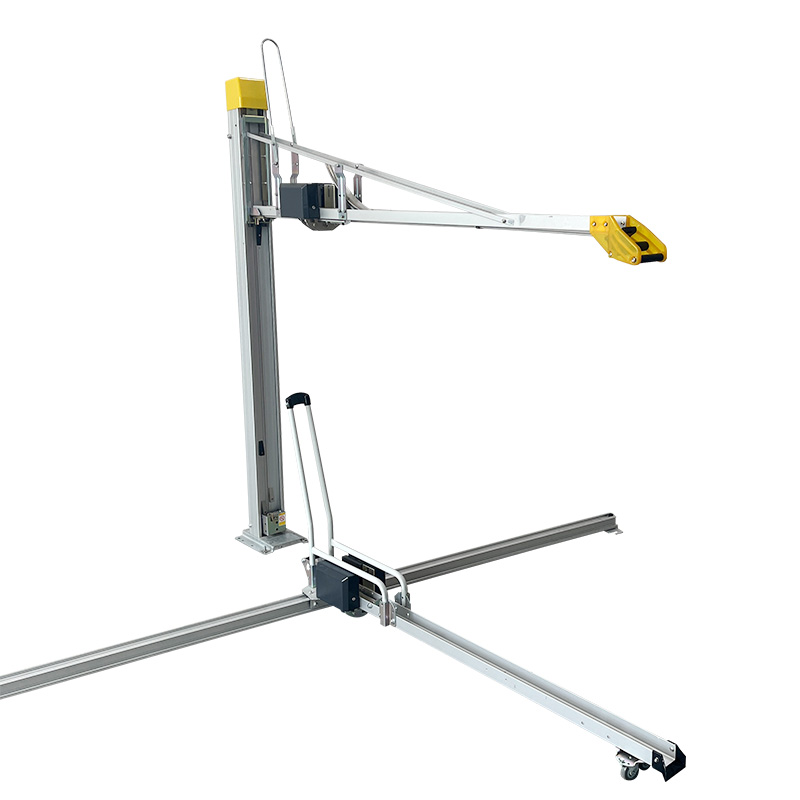

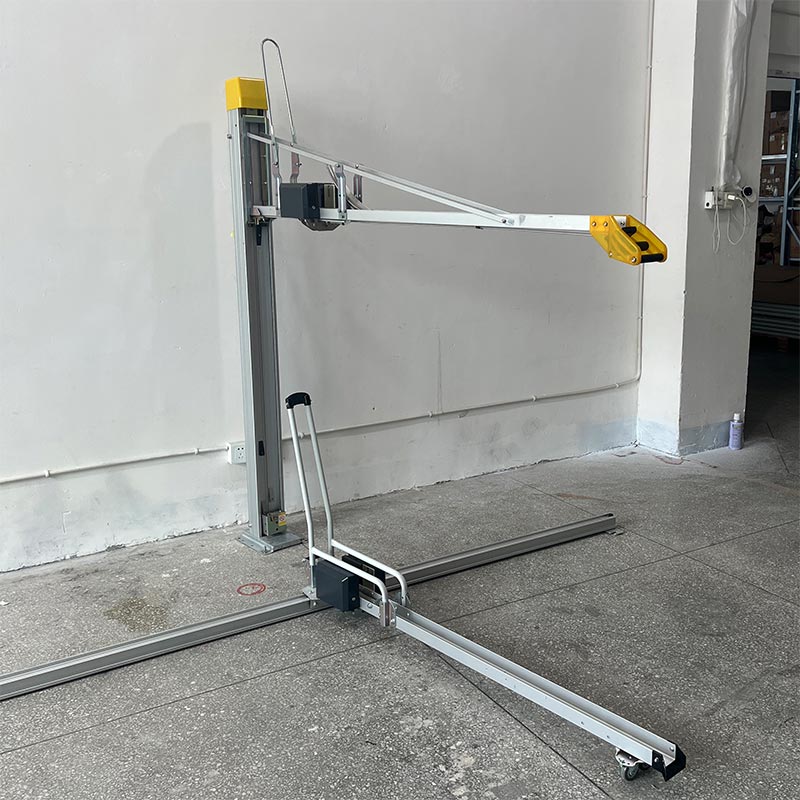

Wireless lock for two-tier bike rack consists of two tiers--the upper tier vertical lifting bike rack and lower tier sliding bike rack.
The upper tier vertical lifting bike rack is ergonomically designed, and when parking or retrieving a bike, the wheel channel of the upper rack is lowered to be flush with the ground, so users can easily push or slide their bikes into or out of the wheel channel. Easy lifting gas strut fitted，the user can raise the bike to the top with minimal force.
The lower tier sliding bike rack can be easily slid from side to side on flat surfaces with the help of rails and casters. This not only provides space for lowering the upper rack, but also provides comfortable maneuvering space when using the lower rack.

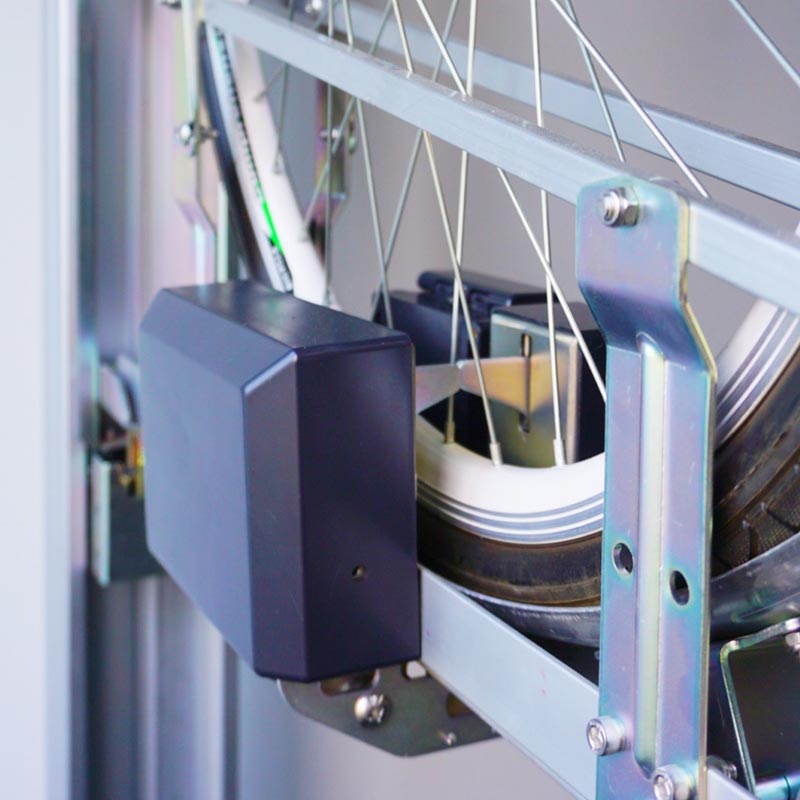

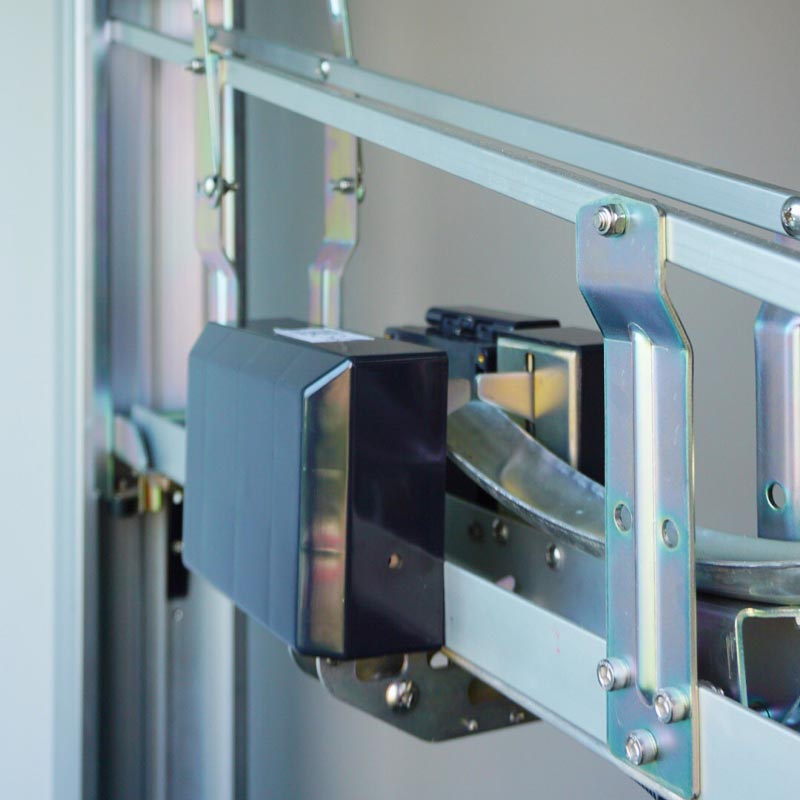

When cyclists want to store their bikes, put the front wheel of the bike into the wheel channel of the rack, the wireless smart lock will automatically lock the bike on the rack after sensing the bike. When picking up the bike, scan the QR code on the lock with the cell phone APP, and the cell phone will show the length of the bike storage and the cost. After paying the fee, the corresponding smart lock will be unlocked automatically, and then the bike can be taken away.
The advantage of the Wireless lock for two-tier bike rack
◇ Space-efficient, high-density storage in limited space. ◇ Bicycle is well supported when being stored. ◇ The bicycle is held stable in the wheel channels with Wireless lock for additional security.
The Wireless lock for two-tier bike rack is a very popular solution for high-density bike storage, ideal for train stations, campuses, malls, and shopping centers.
Maximize your cycle storage capacity and encourage sustainable transportation with our innovative Two-Tier Bike Rack solution.
